ASTM A182 F304 Forged Socket Fittings Specification

Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service


ASTM A182 F304 specification covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves and parts for high-temperature service. After hot working, forgings shall be cooled to a specific temperature prior to heat treatment, which shall be performed in accordance with certain requirements such as heat treatment type, austenitizing/solution temperature, cooling media, and quenching. The materials shall conform to the required chemical composition for carbon, manganese, phosphorus, silicon, nickel, chromium, molybdenum, columbium, titanium. The material shall conform to the requirements as to mechanical properties for the grade ordered such as tensile strength, yield strength, elongation, Brinell hardness. All H grades and grade F 63 shall be tested for average grain size.

A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

To join pipe to Valves and fittings or to other sections of pipe, fillet-type seal welds be used. Socket Welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.

Fatigue resistance is lower than that in butt-welded construction due to the use of fillet welds and abrupt fitting geometry, but it is still better than that of most mechanical joining methods.

SW Fittings are family of High Pressure Fittings are used in various industrial processes.

  • They are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.
  • They are used only in conjunction with ASME Pipe and are available in the same size range.
  • They are used in areas where pipe-work is permanent and are designed to provide good flow characteristics.
  • They are are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and Seamless Tubeswhich conform to the fittings chemical requirements, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.
  • They are available in three pressure ratings: Class 3000, 6000 and 9000.

ADVANTAGES

  • The pipe need not be beveled for weld preparation.
  • Temporary tack welding is no needed for alignment, because in principle the fitting ensures proper alignment.
  • The weld metal can not penetrate into the bore of the pipe.
  • They can be used in place of threaded fittings, so the risk of leakage is much smaller.
  • Radiography is not practical on the fillet weld; therefore correct fitting and welding is crucial. The fillet weld may be inspected by surface examination, magnetic particle (MP), or liquid penetrant (PT) examination methods.
  • Construction costs are lower than with butt-welded joints due to the lack of exacting fit-up requirements and elimination of special machining for butt weld end preparation.

UNS S30400

ASTM A182 F304 is the standard "18/8" stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special "304DDQ" (Deep Drawing Quality) variants.

Grade 304 is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

ASTM A182 F304L the low carbon version of 304, does not require post-weld annealing and so is extensively used in heavy gauge components (over about 6mm).

ASTM A182 F304H with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Prosaic Steel and Alloy Supply Complete Range of Products in ASTM A182 F304 including Elbow, Tee, Reducer, End Caps, Nipple, Union, Coupling, Bush, Boss, Plug etc.

ASTM A182 F304 Pipe Fittings Range

Prosaic Steell and Alloys was established in 1985 and have 3 decades of experience in manufacturing ASTM A182 F304 pipe fittings and flanges in accordance to ASME B16.9/ B16.11 with commitment to provide world class quality to our customers at competitive price by using innovative production system and process.

ASTM A182 F304 Forged Socket Weld Fittings Range

Prosaic Steell and Alloys was established in 1985 and have 3 decades of experience in manufacturing ASTM A182 F304 Forged Socket Weld F fittings and flanges in accordance to ASMEB16.11 and MSS-SP-83 with commitment to provide world class quality to our customers at competitive price by using innovative production system and process.

Material :
  1. Stainless Steel ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L
    ASTM A312/A403 TP304, TP304L, TP316, TP316L
  2. Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pressure : 3000LBS, 6000LBS, 9000LBS
Size : 1/8"~4" (DN6~DN100)
Types   Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps

Plugs and Bushings are not identified. They may be used up through Class 6000 NPS

Are you Looking for ASTM A182 F304 Forged Socket Weld Fittings Supplier ?

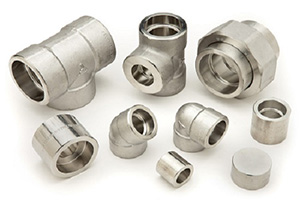

ASTM A182 F316 Forged Socket Weld Fittings, 316 Forged Socket Weld Fittings, 316 Stainless Steel Forged Socket Weld Fittings, 316 Forged Socket Weld Fittings Manufacturer, ASTM A182 F316 Elbow, ASTM A182 F316 90 Degree Elbow, ASTM A182 F316 45 Degree Elbow, ASTM A182 F316 180 Degree Elbow, ASTM A182 F316 Coupling, ASTM A182 F316 Union ASTM A182 F316 End Cap, ASTM A182 F316 1.5D Elbow, ASTM A182 F316 Bend, ASTM A182 F316 Stub End, ASTM A182 F316 Cross, ASTM A182 F316 Equal Tee, ASTM A182 F316 Unequal Tee, ASTM A182 F316 Pipe End Cap, ASTM A182 F316 Bush, ASTM A182 F316 Swage Nipple, ASTM A182 F316 Nipple as per ASME B16.11 Forged Socket Weld Fittings
