ASTM A182 F317L Forged Socket Fittings Specification
Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service
ASTM A182 F317L specification covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves and parts for high-temperature service. After hot working, forgings shall be cooled to a specific temperature prior to heat treatment, which shall be performed in accordance with certain requirements such as heat treatment type, austenitizing/solution temperature, cooling media, and quenching. The materials shall conform to the required chemical composition for carbon, manganese, phosphorus, silicon, nickel, chromium, molybdenum, columbium, titanium. The material shall conform to the requirements as to mechanical properties for the grade ordered such as tensile strength, yield strength, elongation, Brinell hardness. All H grades and grade F 63 shall be tested for average grain size.
A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
To join pipe to Valves and fittings or to other sections of pipe, fillet-type seal welds be used. Socket Welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.
Fatigue resistance is lower than that in butt-welded construction due to the use of fillet welds and abrupt fitting geometry, but it is still better than that of most mechanical joining methods.
SW Fittings are family of High Pressure Fittings are used in various industrial processes.
UNS S31703
ASTM A182 F317L Forged Socket Weld Fittings is a molybdenum bearing, low carbon content "L" grade austenitic stainless steel that provides improved corrosion resistance over 304L and 316L stainless steels. The low carbon provides resistance to sensitization during welding and other thermal processes.
317L is non-magnetic in the annealed condition but may become slightly magnetic as a result of welding.

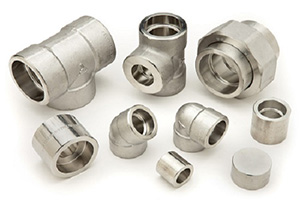

Prosaic Steel and Alloy Supply Complete Range of Products in ASTM A182 F317L Forged Socket Weld Fittings including Elbow, Tee, Cap, Coupling, Bush, Plug, Swage Nipple,, Cross etc.
ASTM A182 F317L Forged Socket Weld Fittings Range
Prosaic Steell and Alloys was established in 1985 and have 3 decades of experience in manufacturing ASTM A182 F317L Forged Socket Weld F fittings and flanges in accordance to ASMEB16.11 and MSS-SP-83 with commitment to provide world class quality to our customers at competitive price by using innovative production system and process.
Material | : |
|
Dimension | : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Pressure | : | 3000LBS, 6000LBS, 9000LBS |
Size | : | 1/8"~4" (DN6~DN100) |
Types | Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
Plugs and Bushings are not identified. They may be used up through Class 6000 NPS
SS | 317 | 317L |
Ni | 11 - 14 | 11 - 15 |
N | - | - |
Cr | 18 – 20 | 18 - 20 |
C | 0.08 max | 0.035 max |
Si | 1 max | 1 max |
Mn | 2 max | 2 max |
P | 0.040 max | 0.040 max |
S | 0.030 max | 0.03 max |
Mo | 3.00 - 4.00 | 3 – 4 |
Density | 8.0 g/cm3 |
Melting Point | 1454 °C (2650 °F) |
Tensile Strength | Psi – 75000, MPa – 515 |
Yield Strength (0.2%Offset) | Psi – 30000, MPa – 205 |
Elongation | 35 % |
Specific Heat (0-100°C) | Thermal Conductivity | Thermal Expansion | Modulus Elasticity | Electrical Resistivity | Density |
500 | 14.6 | 16.5 | 193 | 7.4 | 7.99 |
J.kg-1.°K-1 | W.m -1.°K-1 | mm/m/°C | GPa | μohm/cm | g/cm3 |
STANDARD | UNS | WERKSTOFF NR. |
SS 317 | S31700 | 1.4449 |
SS 317L | S31703 | 1.4438 |
ELBOW 90° This Elbows make 90° changes of direction in the run of pipe. |
ELBOW 45° This Elbows make 45° changes of direction in the run of pipe. |
TEE STRAIGHT This Tee makes 90° branch from the main run of pipe. |
HALF-COUPLING The Half Coupling can be directly welded to the run pipe, to make a branch connection. |
FULL-COUPLING A Full Coupling, joins pipe two pipe or to a nipple etc.. |
REDUCING COUPLING The Reducing Coupling joints two different outside diameters of pipe. |
REDUCER INSERT Socket Weld Reducer Inserts are manufactured to MSS SP-79. They enable quick and economic combinations of pipeline reductions to be made using standard Socket Weld fittings. |
UNION (MSS SP-83) It is a screwed joint design and it consists of three interconnected pieces: two internally threads and a centerpiece that draws the ends together when rotated. Unions should be screwed tight before the ends are welded to minimize warping of the seats. |
CROSS Crosses makes 90° branch from the main run of pipe. |
CAP (END CAP) Seals the end of pipe. |
BOSS |
BUSHING |
ASTM A182 F317L Forged Socket Weld Fittings is sleeved into plastic bag individually, pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
ASTM A182 F317L Socket Weld Pipe Fittings packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
Delivery: Within 10-25 days or asap if we have enough stock
ASTM A182 F317L ELBOW - USD $ 150 ONWARDS |
ASTM A182 FP317L LONG RADIUS ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L SHORT RADIUS ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L 45 ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L 90 ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L 180 ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L 1D ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L 3D ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L 5D ELBOW - USD $ 150 ONWARDS |
ASTM A182 F317L BUSH - USD $ 150 ONWARDS |
ASTM A182 F317L BUSHING - USD $ 150 ONWARDS |
ASTM A182 F317L REDUCING COUPLING - USD $ 150 ONWARDS |
ASTM A182 F317L TEE - USD $ 350 ONWARDS |
ASTM A182 F317L EQUAL TEE - USD $ 350 ONWARDS |
ASTM A182 F317L CROSS - USD $3150 ONWARDS |
ASTM A182 F317L END CAP - USD $ 150 ONWARDS |
ASTM A182 F317L UNION - USD $ 150 ONWARDS |
ASTM A182 F317L INSERT - USD $ 150 ONWARDS |
ASTM A182 F317L REDUCER INSERT - USD $ 150 ONWARDS |
ASTM A182 F317L FULL COUPLING - USD $ 150 ONWARDS |
ASTM A182 F317L HALF COUPLING - USD $ 150 ONWARDS |
ASTM A182 F317L NIPPLE - USD $ 150 ONWARDS |
ASTM A182 F317L SWAGE NIPPLE - USD $ 150 ONWARDS |
ASTM A182 F317L CROSS - USD $ 150 ONWARDS |
ASTM A182 FP317L UNION - USD $ 150 ONWARDS |
ASTM A182 F317L BUSH - USD $ 150 ONWARDS |
ASTM A182 F317L UNEQUAL TEE - USD $ 350 ONWARDS |
Fittings are used wherever liquids, gases, chemicals and other fluids are created, processed, transported, or used. Range of industries is very wide, as shown below:
Common Dimensions | Elbows, Tees & Crosses | Laterals, Couplings & Caps | |||||||||||||||
Nom. Pipe Size |
Min. Socket Dia. |
Nom. Bore Dia. |
A | B | C | D | E | F | G | H | J | K | L | M | N | O | P |
PRESSURE CLASS 3000 | |||||||||||||||||
1/8 | 0.42 | 0.269 | 0.8 | 0.9 | 0.7 | 0.9 | 0.4 | 0.3 | 1.1 | 0.8 | 0.4 | 0.7 | |||||
1/4 | 0.555 | 0.364 | 0.8 | 0.9 | 0.7 | 0.9 | 0.4 | 0.3 | 1.1 | 0.9 | 1.62 | 0.7 | 1.25 | 0.3 | 0.4 | 0.9 | 0.8 |
3/8 | 0.69 | 0.493 | 0.9 | 1.1 | 0.7 | 1.1 | 0.5 | 0.3 | 1.1 | 1.1 | 1.88 | 0.8 | 1.44 | 0.4 | 0.4 | 1.3 | 0.8 |
1/2 | 0.855 | 0.622 | 1.1 | 1.3 | 0.8 | 1.3 | 0.6 | 0.4 | 1.3 | 1.3 | 2.06 | 0.8 | 1.62 | 0.4 | 0.4 | 1.3 | 0.8 |
3/4 | 1.065 | 0.824 | 1.3 | 1.5 | 1 | 1.5 | 0.8 | 0.5 | 1.5 | 1.5 | 2.53 | 1 | 2 | 0.4 | 0.6 | 1.5 | 1 |
1 | 1.33 | 1.049 | 1.4 | 1.8 | 1.1 | 1.8 | 0.9 | 0.6 | 1.6 | 1.9 | 2.94 | 1.1 | 2.38 | 0.5 | 0.6 | 1.8 | 1 |
1 1/4 | 1.675 | 1.38 | 1.7 | 2.3 | 1.2 | 2.3 | 1.1 | 0.7 | 1.6 | 2.3 | 3.44 | 1.3 | 2.81 | 0.6 | 0.6 | 2.3 | 1.1 |
1 1/2 | 1.915 | 1.61 | 1.9 | 2.5 | 1.3 | 2.5 | 1.3 | 0.8 | 1.6 | 2.5 | 3.88 | 1.4 | 3.19 | 0.7 | 0.6 | 2.5 | 1.1 |
2 | 2.406 | 2.067 | 2.3 | 3.1 | 1.7 | 3.1 | 1.5 | 1 | 2.1 | 3 | 4.69 | 1.6 | 3.88 | 0.8 | 0.7 | 3.1 | 1.3 |
2 1/2 | 2.906 | 2.469 | 2.9 | 3.6 | 2 | 4 | 1.6 | 1.1 | 2.1 | 3.6 | 6.88 | 2.1 | 5.94 | 1.2 | 0.7 | 3.6 | 1.3 |
3 | 3.535 | 3.068 | 3.3 | 4.3 | 2.4 | 4.6 | 2.3 | 1.3 | 2.1 | 4.4 | 8.5 | 2.5 | 7.25 | 1.3 | 0.7 | 5.1 | 1.4 |
4 | 4.545 | 4.026 | 4.2 | 5.8 | 3.1 | 5.8 | 2.6 | 1.6 | 2.4 | 5.5 | 13.6 | 4 | 12.1 | 2.5 | 0.8 | 6.8 | 1.6 |
PRESSURE CLASS 6000 | |||||||||||||||||
3/8 | 0.69 | 0.344 | 1.1 | 1.3 | 0.9 | 1.3 | 0.6 | 0.4 | 1.1 | 1.3 | 2.12 | 0.9 | 1.5 | 0.3 | 0.4 | 1.3 | 0.9 |
1/2 | 0.855 | 0.464 | 1.3 | 1.5 | 1 | 1.5 | 0.8 | 0.5 | 1.3 | 1.5 | 2.56 | 1 | 2 | 0.4 | 0.4 | 1.5 | 0.9 |
3/4 | 1.065 | 0.612 | 1.5 | 1.8 | 1.1 | 1.8 | 0.9 | 0.6 | 1.5 | 1.8 | 3 | 1.1 | 2.38 | 0.5 | 0.6 | 1.8 | 1.1 |
1 | 1.33 | 0.815 | 1.7 | 2.3 | 1.3 | 2.3 | 1.1 | 0.7 | 1.6 | 2.3 | 3.5 | 1.3 | 2.81 | 0.6 | 0.6 | 2.3 | 1.2 |
1 1/4 | 1.675 | 1.16 | 2 | 2.5 | 1.3 | 2.5 | 1.3 | 0.8 | 1.6 | 2.5 | 3.94 | 1.4 | 3.19 | 0.7 | 0.6 | 2.5 | 1.2 |
1 1/2 | 1.915 | 1.338 | 2.3 | 3.1 | 1.7 | 3.1 | 1.5 | 1 | 1.6 | 3 | 4.75 | 1.7 | 3.88 | 0.8 | 0.6 | 3.1 | 1.3 |
2 | 2.406 | 1.687 | 2.5 | 3.4 | 1.8 | 3.4 | 1.6 | 1.1 | 2.1 | 3.6 | 6.88 | 2.1 | 6 | 1.3 | 0.7 | 3.6 | 1.4 |
2 1/2 | 2.906 | 2.125 | 3.2 | 4 | 2 | 4 | 2.3 | 1.3 | 2.1 | 4.3 | 8.5 | 2.5 | 7.5 | 1.5 | 0.7 | 5.1 | 1.4 |
3 | 3.535 | 2.624 | 3.7 | 4.8 | 2.4 | 4.6 | 2.5 | 1.4 | 2.1 | 5 | 8.5 | 2.5 | 7.25 | 1.3 | 0.7 | 5.1 | 1.6 |
4 | 4.545 | 3.438 | 4.5 | 6 | 3.1 | 5.8 | 2.6 | 1.6 | 2.4 | 6.3 | 13.6 | 4 | 12.1 | 2.5 | 0.8 | 6.8 | 1.8 |
All dimensions given in inches.
Class 3000 fittings rated same as Sch. 80.
Class 6000 fittings rated same as Sch. 160 pipe.
