EQUAL TEE ANSI B 16.9

Forged Equal Tees, Equal Tees Socket Weld, Equal Tees Threaded, Seamless Equal Tees, Welded Equal Tees

Stainless Steel Tee, Carbon Steel Tee, Alloy Steel Tee and Nickel Based High Alloy Tee
Manufacturer and Exporter's of Equal Tee ANSI B 16.9 in India

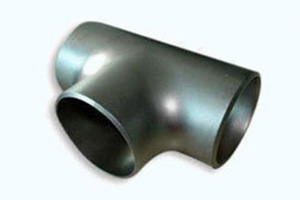

Buttweld Equal Tee We specialize in manufacturing and export of an extensive range of equal tee fittings that are available in various standard and customized metals, sizes, dimensions and finishes to choose from. Optimization of top grade metals makes these equal tees capable of withstanding high pressure & temperature and resisting to corrosion. Our ANSI B 16.9 grade equal tee fittings are used to connect the Pipes of different diameters and change the direction of pipe flow.

Prosaic Steel & Alloys manufactures a wide range of tees (pipefitting) made of exotic metals, nickel, nickel alloys, Stainless Steel etc., of various grades. Tees (branch outlets) are manufactured as Equal tees and Reducing tees. Equal tees are exactly that, all three ends are of the same size. Reducing tees come with a combination of different outlet sizes.

Prosaic Steel & Alloys manufactures & supplies high quality tees (pipe fitting) that can be used for various applications. Our tees are tested and verified for durability, accuracy and precision.

Prosaic Steel & Alloys manufactures forged [ socket weld tee, forged threaded tees ], seamless & welded tees of types equal tee, reducing tees to ANSI B 16.9 from classes 2000 to 9000 and Schedules from 10 to 160.

Prosaic Steel & Alloys manufactures tees accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160.

Prosaic Steel & Alloys designs & manufactures tees (pipe fittings) of special type made according to drawing on request.

Material:

Carbon steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 and WPHY-42/46/52/56/60/65/70
Stainless steel: ASTM A403 WP304/304L, WP316/316/L, WP321, WP347 and WPS31254
Alloy steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32750/S32760
Special alloy steel: Monel400 and Inconel 600/800/825/C276, Ceramic Lined
Pressure: SCH5 to SCH160
Standard: ANSI B16.9/B16.28 and MSS SP-43/SP-75
Size range: 1/2 to 72 inches
Types: T, Pipe Tee, LT, Lateral tee, RT, Reducing tee
end Bevel: According to the bevel of welding pipe fittings construction
Surface treatment:Shot blasted, rust-proof black oil

INCHES METRIC
N.B. O.D. At Bevel C M N.B. O.D. At Bevel C M
½ 0.840 1 1 15 21.34 25.40 25.40
¾ 1.050 1 1/8 1 1/8 20 26.67 28.58 28.58
1 1.315 1-½ 1-½ 25 33.40 38.10 38.10
1¼ 1.660 1 7/8 1 7/8 32 42.16 47.63 47.63
1-½ 1.900 2¼ 2¼ 40 48.26 57.15 57.15
2 2.375 2-½ 2-½ 50 60.33 63.50 63.50
2-½ 2.875 3 3 65 73.03 76.20 76.20
3 3.500 3-3/8 3-3/8 80 88.90 85.73 85.73
3-½ 4.000 3 ¾ 3 ¾ 90 101.60 95.25 95.25
4 4.500 4 1/8 4 1/8 100 114.30 104.78 104.78
5 5.563 4 7/8 4 7/8 125 141.30 123.83 123.83
6 6.625 5 5/8 5 5/8 150 168.28 142.88 142.88
8 8.625 7 7 200 219.08 177.80 177.80
10 10.750 8-½ 8-½ 250 273.05 215.90 215.90
12 12.750 10 10 300 323.85 254.00 254.00
14 14.000 11 11 350 355.60 279.40 279.40
16 16.000 12 12 400 406.40 304.80 304.80
18 18.000 13-½ 13-½ 450 457.20 342.90 342.90
20 20.000 15 15 500 508.00 381.00 381.00
22 22.000 16-½ 16-½ 550 558.80 419.10 419.10
24 24.000 17 17 600 609.60 431.80 431.80
26 26.000 19-½ 19-½ 650 660.40 495.30 495.30
28 28.000 20-½ 20-½ 700 711.20 520.70 520.70
30 30.000 22 22 750 762.00 558.80 558.80
32 32.000 23-½ 23-½ 800 812.80 596.90 596.90
34 34.000 25 25 850 863.60 635.00 635.00
36 36.000 26-½ 26-½ 900 914.40 673.10 673.10
38 38.000 28 28 950 965.20 711.20 711.20
40 40.000 29-½ 29-½ 1000 1016.00 749.30 749.30
42 42.000 30 28 1050 1066.80 762.00 711.20
44 44.000 32 30 1100 1117.60 812.80 762.00
46 46.000 33-½ 31-½ 1150 1168.40 850.90 800.10
48 48.000 35 33 1200 1219.20 889.00 838.20
