DIN 2605 Part 2 Type 2 Elbow

DIN 2605 Elbow | DIN 2605 Part 2 Type 2 Elbow - 45º Degree Elbow, 90º Degree Elbow and 180º Degree Elbow

DIN 2605 Elbow | DIN 2605 Part 2 Type 2 Elbow - Buttweld Pipe Fittings Manufacturing in Stainless Steel, Duplex Steel, Carbon Steel, Alloy Steel and High Nickel Alloys

DIN 2605 Elbow with Type 2 confirming to Dimension B16.9 and B16.28 including 45º, 90º, 180º, Seamless Elbow, Welded Elbow, Long Radius, Short Radius.

DIN 2605-2 Type 2 Elbow Manufacturer, Stockholder, Suppliers, Distributor and Exporter in India. Delivering High Quality DIN 2605 Type 2 ELbow on Time. Fast Delivery Guaranteed for every size DIn 2605-2 Elbow Largest range of DIN 2605-2 Type 45º Degree Elbow, 90º Degree Elbow and 180º Degree Elbow, suppliers based in India.

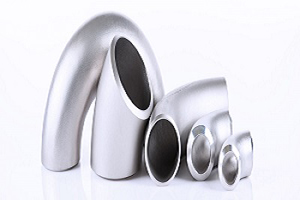

>DIN 2605| IN 2605 Part 1| DIN 2605 Part 2| DIN 2605 Elbow Manufacturer| DIN 2605 Elbow Supplier| DIN 2605 Type 2, 3, 4, 5 Seamless Elbow| DIN 2605 Specification| DIN 2605 Elbow Dimension

What is DIN 2605-2 Type 2 Elbow ?

DIN 2605-2 Type 2 Elbow are the results of work at national, European and/or international level. Anyone can submit a proposal for a new standard. Once accepted, the standards project is carried out according to set rules of procedure by the relevant DIN Standards Committee, the relevant Technical Committee of the European standards organization CEN (CENELEC for electrotechnical standards) or the relevant committee at the international standards organization isO (IEC for electrotechnical projects).

All stakeholders can participate in this work, including manufacturers, consumers, businesses, research institutes, public authorities and testing bodies. They send experts to represent their interests within DIN's working bodies, which are overseen by some 70 standards committees, each of which is responsible for a specific subject area. For work at European and international level, the DIN standards committees send experts to represent German interests within CEN and isO, respectively. DIN staff members coordinate the standardization process and are responsible for overall project management, ensuring the uniformity and consistency of the German standards collection.

Standards are developed with full consensus, that is, they are developed by experts with the aim of arriving at a common standpoint, taking the state of the art into consideration.

DIN Standards are reviewed at least every five years. If a standard no longer reflects the current state of technology, it is either revised or withdrawn.

Prosaic Steel and Alloy Supply DIN 2605-2 Type 2 Elbow in All Sizes

DIN 2605-2 Type 2 Elbow Specification?

Steel Buttwelding Pipe Fittings - Elbows and Bends for use at Full service Pressure DIN 2605 standard specifies the design and dimensions of seamless and welded steel elbows and bends rated for the same internal pressure as the pipes to which they are to be connected (cf. clause 6). As the pressure rating of pipes is a function of their wall thickness, fittings have been classified according to wall thickness series (cf. table 1).

DIN 2605-2 Type 2 Elbow Range

DIN 2605 Elbow Specification DIN 2605Part 1 and DIN 2605 Part 2.
EN10253 Typ A and B, ASME B16.9, production according to customer specification.
DIN 2605 Elbow Grades EN / DIN()
  • P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H
  • 16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44)
  • X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10
  • P215NL (TTST35N/V), 12Ni14 (10Ni14)
  • P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2
  • L290NB (STE 290.7), L360NB (STE 360.7)
  • 1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878,, 1.4876, 1.4952, 1.4835, 1.4877, 1.4910

ASTM / ASME

  • WPA, WPB, WPC, WP1, WP5, WP9, WP11, WP12, WP22, WP32/27, WP91, WP92, WP304, WP304 H, WP304L, WP310, WP316, WP316L, WP316TI, WP321, WP347, WP347H
  • WPL 3, WPL6, X42, X52, WPHY52, WPHY60
  • S30815, S31000, S31050, S31500, S31726, S31803, S32760, N08904
  • Alloy 800H, DMV310N
DIN 2605 Elbow Shapes 45º ELBOW / 90º ELBOW/ 180º ELBOW
DIN 2605 Elbow Outer Diameter & Wall Thickness Size 1/2" NB To 32" NB (Nominal Bore Size)
Wall Thickness: from 1 mm to 50 mm, depending on the outside diameter
DIN 2605 Elbow Make Process SEAMLESS AND WELDED in 2D, 3D, 5D, long radius, short radius - 2D, 3D, 5D, long radius, short radius
DIN 2605 Elbow Types DIN 2605-2 TYPE 2, DIN 2605-2 TYPE 3, DIN 2605-2 TYPE 4, DIN 2605-2 TYPE 5, DIN 2605-2 TYPE 2, DIN 2605-2 TYPE 3, DIN 2605-2 TYPE 4, DIN 2605-2 TYPE 5
DIN 2605 Elbow Delivery Conditions As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined
DIN 2605 Elbow Dimension Standard Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.28, ANSI B16.36, and ANSI B16.48
DIN 2605 Elbow Other Testing NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
DIN 2605 Elbow Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
DIn 2605 Elbow Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
DIN 2605 Elbow Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
DIN 2605 Elbow Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

DIN 2605-2 Type 2 Elbow Available Grades

EN / DIN ASME / ASTM
P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H, 16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44), X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10, P215NL (TTST35N/V), 12Ni14 (10Ni14), P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2, L290NB (STE 290.7), L360NB (STE 360.7),1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878, 1.4876, 1.4952, 1.4835, 1.4877, 1.4910 St 35.8 I + III, 15 Mo 3, 13 CrMo 4 4, 10 CrMo 9 10, TTSt 35 N, St 52.0, st WPA, WPB, WPC, WP1, WP5, WP9, WP11, WP12, WP22, WP32/27, WP91, WP92, WP304, WP304 H, WP304L, WP310, WP316, WP316L, WP316TI, WP321, WP347, WP347H, WPL 3, WPL6, X42, X52, WPHY52, WPHY60, S30815, S31000, S31050, S31500, S31726, S31803, S32760, N08904, Alloy 800H, DMV310N52.4

DIN 2605-2 Type 2 Elbow Types

DIN 2605-2 (PART 1) DIN 2605-2 (PART 2)
45º Elbow 90º Elbow 180º Elbow 45º Elbow 90º Elbow 180º Elbow
DIN 2605-1 TYPE 2 45º ELBOW DIN 2605-1 TYPE 2 90º ELBOW DIN 2605-1 TYPE 2 180º ELBOW DIN 2605-2 TYPE 2 45º ELBOW DIN 2605-2 TYPE 2 90º ELBOW DIN 2605-2 TYPE 2 180º ELBOW
DIN 2605-1 TYPE 3 45º ELBOW DIN 2605-1 TYPE 3 90º ELBOW DIN 2605-1 TYPE 3 180º ELBOW DIN 2605-2 TYPE 3 45º ELBOW DIN 2605-2 TYPE 3 90º ELBOW DIN 2605-2 TYPE 3 180º ELBOW
DIN 2605-1 TYPE 4 45º ELBOW DIN 2605-1 TYPE 4 90º ELBOW DIN 2605-1 TYPE 4 180º ELBOW DIN 2605-2 TYPE 4 45º ELBOW DIN 2605-2 TYPE 4 90º ELBOW DIN 2605-2 TYPE 4 180º ELBOW
DIN 2605-1 TYPE 5 45º ELBOW DIN 2605-1 TYPE 5 90º ELBOW DIN 2605-1 TYPE 5 180º ELBOW DIN 2605-2 TYPE 5 45º ELBOW DIN 2605-2 TYPE 5 90º ELBOW DIN 2605-2 TYPE 5 180º ELBOW

DIN 2605-2 Type 2 Elbow Packing and Shipping

din 2605 elbow,din 2605-2 elbow,din 2605-2 elbow
15 21,3 R=17,5 R=28 R=42,5
b=28 b=38 b=53
2.0 0,03 0,04 0,07
2,3 0,03 0,05 0,07
2,6 0,04 0,05 0,08
2,9 0,04 0,06 0,09
3,2 0,05 0,07 0,10
3,6 0,05 0,08 0,12
20 26,9 R=25 R=29 R=57,5
b=39 b=43 b=71
2.3 0,06 0,06 0,13
2,6 0,06 0,07 0,14
2,9 0,06 0,08 0,16
3,2 0,07 0,09 0,17
3,6 0,07 0,10 0,19
4,0 0,08 0,10 0,21
4,5 0,09 0,11 0,24
25 33,7 R=25 R=38 R=72,5
b=42 b=56 b=90
2,6 0,10 0,12 0,23
2,9 0,11 0,13 0,25
3,2 0,12 0,15 0,28
3,6 0,13 0,16 0,31
4,0 0,14 0,18 0,34
4,5 0,14 0,20 0,37
5,0 0,15 0,21 0,41
32 38,0 R=32,5 R=45 R=82
b=52 b=64 b=101
2,6 0,12 0,16 0,30
2,9 0,13 0,18 0,33
3,2 0,14 0,20 0,36
3,6 0,16 0,22 0,40
4,0 0,17 0,24 0,44
42,4 R=32 R=48 R=92,5
b=53 b=69 b=114
2,6 0,15 0,19 0,37
2,9 0,17 0,21 0,41
3,2 0,18 0,23 0,45
3,6 0,21 0,26 0,50
4,0 0,23 0,29 0,55
4,5 0,25 0,32 0,60
5,0 0,27 0,35 0,70
40 44,5 R=40 R=51 R=97,5
b=62 b=73 b=130
2,6 0,17 0,22 0,41
2,9 0,19 0,24 0,46
3,2 0,21 0,26 0,50
3,6 0,23 0,29 0,56
4,0 0,25 0,32 0,61
48,3 R=38 R=57 R=107,5
b=62 b=81 b=132
2,6 0,20 0,26 0,50
2,9 0,22 0,29 0,55
3,2 0,24 0,32 0,60
3,6 0,27 0,36 0,67
4,0 0,29 0,39 0,74
4,5 0,33 0,44 0,82
5,0 0,37 0,48 0,90
50 57,0 R=52,5 R=72 R=127,5
b=81 b=100 b=156
2,9 0,32 0,44 0,78
3,2 0,35 0,48 0,85
3,6 0,39 0,54 0,95
4,0 0,43 0,59 1,05
4,5 0,48 0,66 1,17
5,0 0,53 0,73 1,29
5,6 0,59 0,81 1,42
6,3 0,65 0,89 1,58
60,3 R=51 R=76 R=135
b=81 b=106 b=165
2,9 0,36 0,49 0,87
3,2 0,39 0,54 0,96
3,6 0,44 0,60 1,07
4,0 0,48 0,67 1,17
4,5 0,54 0,74 1,32
5,0 0,59 0,82 1,45
5,6 0,66 0,90 1,60
6,3 0,73 1,00 1,78
7,1 0,78 1,11 1,90
65 76,1 R=63 R=95 R=175
b=102 b=133 b=213
2,9 0,58 0,78 1,44
3,2 0,64 0,86 1,58
3,6 0,71 0,96 1,77
4,0 0,78 1,06 1,96
4,5 0,88 1,19 2,19
5,0 0,97 1,31 2,41
5,6 1,07 1,46 2,68
6,3 1,19 1,62 2,98
7,1 1,33 1,81 3,32
8,0 1,48 2,01 3,70
80 88,9 R=76 R=114 R=205
b=121 b=159 b=250
3,2 0,88 1,22 2,18
3,6 0,96 1,36 2,44
4,0 1,09 1,51 2,70
4,5 1,22 1,69 3,02
5,0 1,34 1,86 3,33
5,6 1,49 2,07 3,71
6,3 1,67 2,31 4,13
7,1 1,86 2,58 4,61
8,0 2,07 2,87 5,14
10,0 2,52 3,50 6,27
100 108,0 R=100 R=142,5 R=252,5
b=154 b=196 b=306
3,6 1,46 2,08 3,68
4,0 1,61 2,30 4,07
4,5 1,81 2,57 4,56
5,0 2,00 2,85 5,04
5,6 2,22 3,17 5,61
6,3 2,48 3,54 6,27
7,1 2,78 3,96 7,01
8,0 3,10 4,42 7,83
10,0 3,40 3,50 9,59
114,3 R=102 R=152 R=270
b=159 b=210 b=327
3,6 1,62 2,36 4,17
4,0 1,80 2,61 4,62
4,5 2,01 2,92 5,17
5,0 2,23 3,23 5,72
5,6 2,48 3,60 6,37
6,3 2,77 4,02 7,12
7,1 3,10 4,50 7,96
8,0 3,46 5,03 8,90
10,0 4,24 6,16 10.9
125 133,0 R=125 R=181 R=321,5
b=192 b=247 b=379
4,0 2,50 3,62 6,25
4,5 2,80 4,06 7,00
5,0 3,10 4,49 7,75
5,6 3,46 5,00 8,64
6,3 3,87 5,60 9,66
7,1 4,33 6,27 10,8
8,0 4,84 7,01 12,1
139,7 R=127 R=190 R=330
b=197 b=260 b=400
4,0 2,79 4,01 6,94
4,5 3,13 4,49 7,78
5,0 3,46 4,97 8,61
5,6 3,86 5,54 9,60
6,3 4,32 6,20 10,8
7,1 4,83 6,95 12,0
8,0 5,41 7,78 13,5
150 159,0 R=150 R=216 R=375
b=230 b=294 b=454
4,5 4,04 5,82 10,1
5,0 4,48 6,45 11,2
5,6 4,99 7,19 12,5
6,3 5,59 8,05 14,0
7,1 6,27 9,03 15,7
8,0 7,02 10,1 17,6
8,8 7,68 11,1 19,2
10,0 8,66 12,5 21,7
14,0 - 18,0 -
150 168,3 R=152 R=229 R=390
b=237 b=313 b=474
4,5 4,43 6,53 11,1
5,0 4,90 7,23 12,3
5,6 5,47 8,07 13,8
6,3 6,13 9,04 15,4
7,1 6,87 10,10 17,3
8,0 7,70 11,40 19,4
8,8 8,43 12,40 21,2
10,0 9,51 14,00 23,9
200 219,1 R=203 R=305 R=510
b=313 b=415 b=620
6,3 10,9 15,8 26,5
7,1 12,3 17,8 29,7
8,0 13,7 20,0 33,4
8,8 15,1 21,9 36,6
10,0 17,0 24,7 41,3
11,0 18,6 27,0 45,2
12,5 21,0 30,5 51,0
16,0 26,4 38,4 66,0
250 273,0 R=254 R=381 R=650
b=391 b=518 b=787
6,3 16,5 24,8 42,3
7,1 18,6 27,9 47,5
8,0 20,9 31,3 53,4
8,8 22,9 34,3 58,5
10,0 25,9 38,3 66,2
11,0 28,4 42,5 72,6
12,5 32,0 48,1 82
300 323,9 R=305 R=457 R=775
b=467 b=619 b=937
7,1 26,6 39,8 67,5
8,0 29,9 44,7 75,9
8,8 32,8 49,1 83,3
10,0 37,1 55,6 94,2
11,0 40,7 60,9 103
12,5 46,0 68,9 117
350 355,6 R=356 R=533 R=850
b=533 b=711 b=1028
8,0 38,2 57,5 91.6
8,8 42,0 63,1 101
10,0 47,5 71,4 114
11,0 52,1 78,3 125
12,5 59,0 88,6 141
14,2 66,7 100 160
400 406,4 R=406 R=610 R=970
b=610 b=813 b=1173
8,0 50,1 75,3 120
8,8 55,1 82,6 132
10,0 62,4 93,6 149
11,0 68,5 103 163
12,0 77,5 116 185
14,2 87,7 131 209
450 457,0 R=457 R=686 R=1122
b=686 b=914 b=1351
8,0 63,3 95,5 156
8,8 69,5 105 171
10,0 78,8 119 194
11,0 86,5 130 213
12,5 98 148 242
14,2 111 167 274
500 508,0 R=508 R=762 R=1245
b=762 b=1016 b=1499
8,0 78,2 118 193
8,8 85,9 130 212
10,0 97,4 147 240
11,0 107 161 264
12,5 121 183 299
14,2 137 207 338
600 610,0 R=610 R=914 R=1525
b=915 b=1210 b=1830
10,0 142 209 348
11,0 156 230 383
12,5 176 260 434
14,2 200 295 491
16,0 224 331 552
17,5 245 361 602
700 711,0 R=711 R=1067 R=1778
b=1067 b=1422 b=2133
10,0 190 285 475
11,0 209 313 521
12,5 237 355 592
14,2 268 403 671
16,0 302 452 -

DIN 2605-2 Type 2 Elbow Packing and Shipping

DIN 2605-2 Type 2 Elbow in are Palletize with Shrink Wrap Plastic or Packed in Wooden Box.

Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested. We can also offer customized packaging for DIN 2605 Elbow as per customer's requirement.

Export packaging is geared towards the protection, handling and transport of DIN 2605-2 Type 2 Elbow by air or sea freight and, as such, shares many characteristics with export and transport packaging. Utmost care must also be taken to make overseas packaging suitable for long periods of storage. It is important for overseas packaging to be designed with ease of handling in mind, so as to ensure DIN 2605 Elbow is treated with the utmost care at all times.

DIN 2605-2 Type 2 Elbow Application

  • Marine fixtures, pumps, valves and piping systems for sea water applications
  • Chemical plant equipment
  • Aerospace applications
  • Musical instruments
  • Heat exchangers
  • High pressure applications
  • Offshore applications
  • Onshore applications
  • Welded pressure vessels for the storage of cryogens

DIN 2605-2 Type 2 Elbow Export Countries

We exportDIN 2605-2 Type 2 Elbow to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, europe, Africa, Asia, North America, South America, Middle East, Far East.etc


Prosaic Steel and Alloys is a well known worldwide exporter of DIN 2605-2 Type 2 Elbow, Prosaic Steel and Alloys is committed to provide each and every customer with the highest standard of customer service. We deals in DIN 2605-2 Type 2 Elbow in India & Overseas, offering a wide range of DIN 2605-2 Type 2 Elbow

Prosaic Steel and Alloys is Leading Manufacturer, Distributor, Exporter, Stockholder and Supplier of DIN 2605 Elbow in United States of America (USA), Saudi Arabia, Iran, Iraq, United Arab Emirates UAE), Singapore, Malaysia, Indonesia
DIN 2605 Elbow | DIN 2605 Part 2 Type 2 Elbow | DIN 2605-2 Type 2 Elbow

we provided DIN 2605-2 Type 2 Elbow. We Carry Complete Range from 1/2" NB to 48" NB. Prosaic Steel and Alloys DIN 2605-2 Type 2 Elbow are known for its High Quality and Competitive Price.
